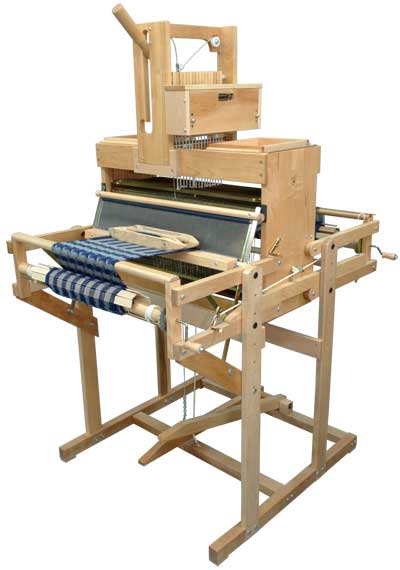

DIANA 24" 16 SHAFT COMPUTER-DOBBY LOOM
(New updated version in 2008)
This floor loom computer dobby loom can be operate in 2 differents ways.
Using the two treadles.
The right Treadle
lifts the Shafts to open the Shed. The left Treadle
assists the return of the Shafts to neutral and controls
the Pattern advance.
Using the front handle:
This Operating Handle lifts the Shafts and locks the
Shed open freeing both Hands to operate the Loom. The
Operating Handle is then lowered changing the Shed to the
next pick position and completing the cycle.
The interface Box supply with the loom is self contained.
|Weaving width: 24"
||Loom depth: 36"
||Net weight: 55 lbs
|Loom width: 28"
||Loom height: 31½"
||Breastbeam height adjustable in 5 different height:
from 29.75" to 35"
steel reed 12 dt.
||1 boat shuttle 6122-1000
|2 Head trays
||10 loop cords for lashing
|1000 Inserted eye heddles 9½"
||1 reed and heddle hook 6141-7000
|2 Metal lease sticks
||2 Beam sticks with cords
