New!
COLONIAL V2,  45" or 60"


TRADITIONAL LOOM
A loom reminiscent of those our ancestors used, with many major improvements which makes this one of the best Leclerc looms ever produced. Its great adaptability allows it to be used as a general purpose loom, or for any specific purpose required by an inventive and creative weaver.
Made of the finest Canadian maple, it is finished with clear lacquer and varnish so that the beauty of the natural grain and color of the lumber remains visible. This loom can have 4, 8 or 12 shafts by adding one or two extra 4 shaft kits.
Because the jacks are in the loom castle, less pressure is needed to lift the shafts.
The overhead beater is optional.

February 2008
We have made major modifications to our Colonial model which now makes this model our premier jack type loom.
- Wider and cleaner shed
- The Back Hinge Treadle is now lower in front for easier treadling
- Jacks now ride on bushings
- New tie-ups system reduces the time for tie-ups and minimzes the occurance of cord mix-up.

COLV2

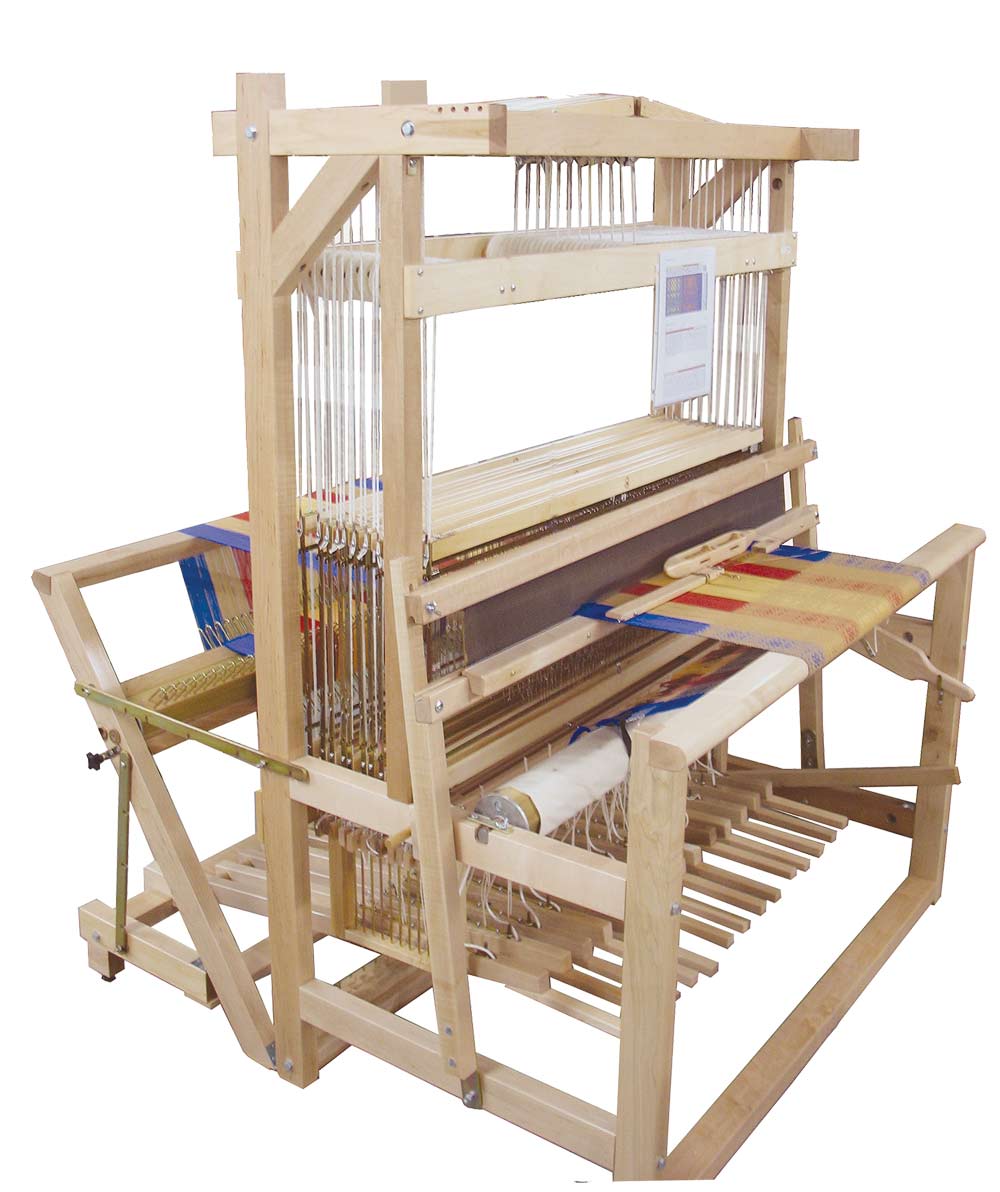

Click Picture to see Colonial V2

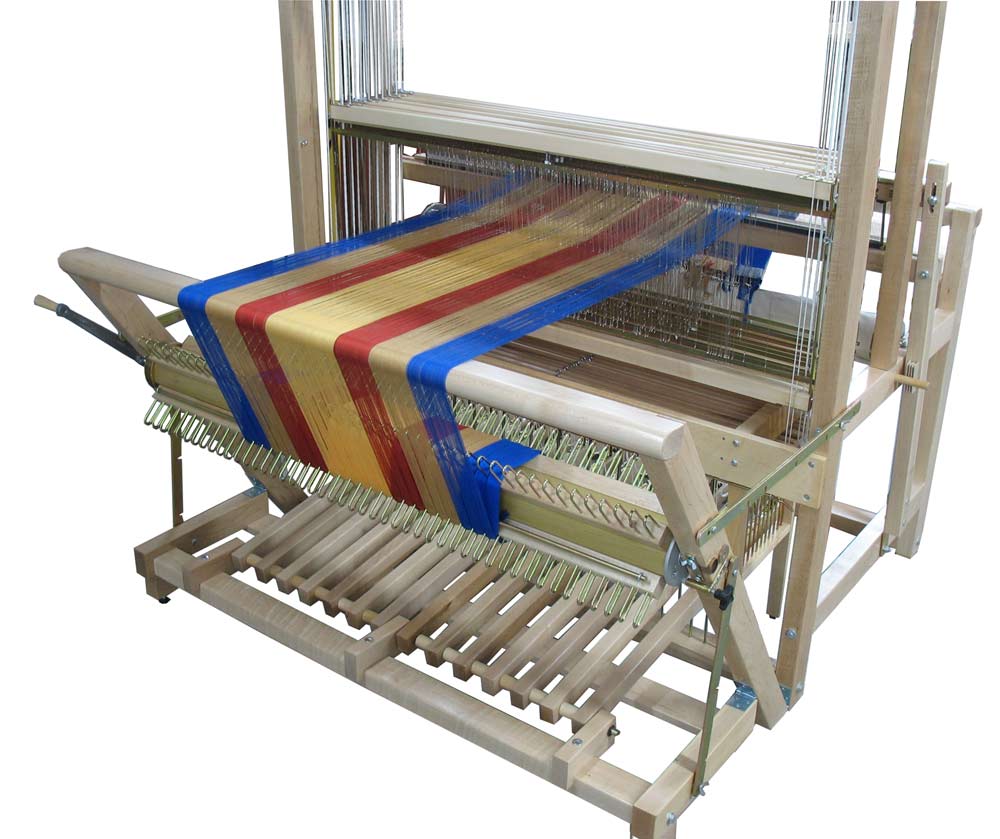

COLONIAL V2 BACK HINGE TREADLE
45"
60"
8 SHAFT LOOM
1051-0028
1052-0028
12 SHAFT LOOM
1051-0212
1052-0212


COLV2BACK
SHED
STANDARD EQUIP,EMT
» Steel reed, 12 dents/inch (5dents/cm) » 2 lease sticks
» 6, 10 or 14 treadles » 4 warp rods
» Wire heddles, 12½" » 2 aprons
» 1 boat shuttle 11¾" (6122-3000) » 2 cords
» 1 doz. plastic bobbins 6133-6000 » Book: "Warp and Weave"
» 1 reed & heddle hook 6141-7000 » Assembly instructions and Video
SPECIFICATION & DIMENTIONS
Weaving Width 45" (115 cm) 60" (150 cm)
Number of Heddles 1200 1500
Loom Width 57" (145 cm) 72" (183 cm)
Depth 53" (135 cm) 53" (135 cm)
Total Height
68" (173 cm)
Front height
34½" 87 cm
Distance between the reed and the breastbeam
14" 35.5 cm
Net Weight

8s = 205 lbs (93 kg)
12s = 298 lbs (134 kb)

8s = 221 lbs (100 kg)
12s = 310 lbs (140 kg)
OPTIONS
 45" 60"
Extra charge for inserted eye heddles instead of wire heddles 1051-9800 1052-9800
Bench open end
6384-4000
Sectional warp beam 1" section 6441-5000 6441-6000
Sectional warp beam 2" section 6442-5000 6442-6000
Double warp beam 6432-4500 6430-6000
OVERHEAD BEATER
6395-9000
Flying shuttle beater 6471-5000 6471-6000

Free shipping in US and Canada (Continental only)
