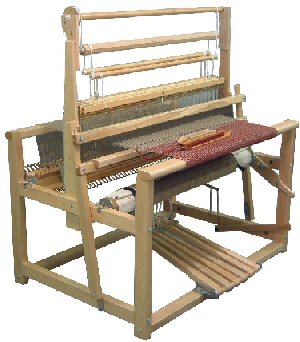

NEW MIRA II


A counter-balanced 4 shaft loom, with a sturdy, rigid frame, that makes it especially useful for teaching, commercial production studio or rug weaving.

You can speed-up the production by adding the flying shuttle beater.


The new Mira II model looms incorporate Leclerc's exclusive Shed Regulator. This unique mechanism provides a quick simple switch from balanced to unbalanced weaves with a minimum of adjustment. This provides the same versatility as a Jack Loom but with the advantage of full control over top and bottom Shed openings offered by the Counterbalance design.


The Counterbalance Shed is wide and clean on every pick over the full range of 4 Shaft weaves, including the higher tension Rug designs.


Solidly constructed out of maple, this loom has a friction brake, and easily removeable cloth and breast beams. All metal parts are plated and the top rollers are adjustable in height. A sectional warp beam can be installed at any time.

1024-0036    36"
1024-0045    45"
1024-0060   60"

MIRA II STANDARD EQUIPMENT

» Steel reed, 12 dents/inch (5dents/cm) » 2 lease sticks
» 6 treadles » 4 warp rods
» Wire heddles, 10½" » 2 aprons
» 1 boat shuttle 11¾" 6122-3000 » 2 cords
» 1 doz. plastic bobbins 6133-6000 » Book: "Warp and Weave"
» 1 reed & heddle hook 6141-7000 » Assembly instructions

SPECIFICATIONS & DIMENSIONS

Weaving width 36" (90 cm) 45" (115 cm) 60" (150 cm)
Number of heddles 1000 1200 1500
Loom Width 46" (117 cm) 55" (140 cm) 70" (178 cm)
Depth 36½"(93 cm) 36½" (93 cm) 36½" (93 cm)
Height  58" (132 cm) 58" (132 cm) 58" (132 cm)
Front height 31¼" (79 cm) 31¼" (79 cm) 31¼" (79 cm)
Net weight 113 lbs (51 kg) 124 lbs (56 kg) 150 lbs (68 kg)

OPTIONS

  36" 45" 60"
Extra charge for inserted eye
heddles instead of wire heddles
1029-9800 1030-9800 1031-9800
Bench open ends 6384-4000 6384-4000 6384-4000
Sectional warp beam 1" section 6441-4000 6441-5000 6441-6000
Sectional warp beam 2" section 6442-4000 6442-5000 6442-6000
Double warp beam 6432-3000 6432-4000 6430-6000
Flying shuttle beater   6471-5000 6471-6000

CANADIAN PRICE (.PDF files)

US PRICE (.PDF files)

Free shipping in US and Canada (Continental only)
