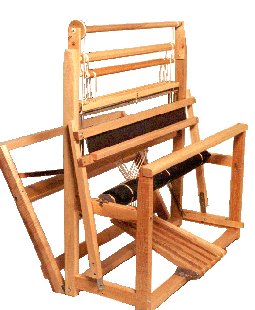

FANNY II


Leclerc's 4 Shaft Counterbalance "Fanny" model Looms have been a favorite of Handweavers for over 60 years. There are literally hundreds in operation thru-out North America and around the world.

Compact and solid.

Due to the ease of Treadlle reach, the "Fanny" is favored by the average weaver for comfort over long weaving sessions. Leclerc's solid design allows weaving the full range of Fabric including Rugs.

With that, Leclerc decided to enhance the overall weavibility by introducing the "Fanny II"

All "Fanny II" model Looms incorporate Leclerc's exclusive Shed Regulator. This unique mechanism provides a quick simple switch from balanced to unbalanced weaves with a minimum of adjustment, providing the same versatility as a Jack Loom but with the advantage of full control over top and bottom Shed openings offered by the Counterbalance design. The Counterbalance Shed is wide and clean on every pick over the full range of 4 Shaft weaves including the higher tension Rug designs.

For the full range of 4 Shaft Fabrics, the "FANNY II" is the choice for price and performance.



1024-0036    36"
1024-0045    45"
1024-0060   60"

FANNY II STANDARD EQUIPMENT

» Steel reed, 12 dents/inch (5dents/cm) » 2 lease sticks
» 6 treadles » 4 warp rods
» Wire heddles, 10½" » 2 aprons
» 1 boat shuttle 11¾" 6122-3000 » 2 cords
» 1 doz. plastic bobbins 6133-6000 » Book: "Warp and Weave"
» 1 reed & heddle hook 6141-7000 » Assembly instructions

SPECIFICATIONS & DIMENSIONS

Weaving width 36" (90 cm) 45" (115 cm) 60" (150 cm)
Number of heddles 1000 1200 1500
Loom Width 48" (117 cm) 55" (140 cm) 70" (178 cm)
Depth when open 36½" (93 cm) 36½" (93 cm) 36½" (93 cm)
Depth when folded 25" (63 cm) 25" (63 cm) 25" (63 cm)
Height  56" (142 cm) 56" (142 cm) 56" (142 cm)
Front height 31¼" (79 cm) 31¼" (79 cm) 31¼" (79 cm)
Net weight 118 lbs (58 kg) 130 lbs (59 kg) 258 lbs (72 kg)

OPTIONS

  36" 45" 60"
Extra charge for inserted eye
heddles instead of wire heddles
1029-9800 1030-9800 1031-9800
Bench open ends 6384-4000 6384-4000 6384-4000
Sectional warp beam 1" section 6441-4000 6441-5000 6441-6000
Sectional warp beam 2" section 6442-4000 6442-5000 6442-6000
Double warp beam 6432-3000 6432-4000 6430-6000
Flying shuttle beater   6471-5000 6471-6000

Free shipping in US and Canada (Continental only)
