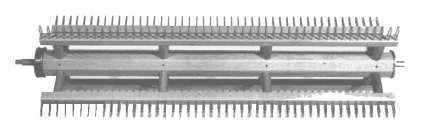

SECTIONAL WARP BEAM

This system consists of 4 rake-like pieces that are attached to the plain beam on the loom or onto the double warp beam. It allows warp beaming 1" or 2" wide (25 mm or 50 mm) at a time and requires a number of spools according to the sett of warp ends.

On the Dorothy and the voyageur, the clamps are fixed directly on the beam; it holds 5" (12,5 cm) by turn. The Compact holds 15'' (38 cm) per turn while on an Artisat or Inca, it holds 16" (40 cm) per rotation. On a Fanny, Mira, Nilus, Nilus II, Colonial I, Kebec or Nilart, it holds 19" (48 cm) per rotation.

A sectional warp beam is especially appreciated by the weaver without a helper since the warp can be beamed easily by one person.

1" (25 mm) SECTIONS

6443-2000	22"
6443-3000	24"
6441-3000	27"
6443-4000	32"
6441-4000	36"
6441-5000	45"
6441-6000	60"
6441-7000	100"
6441-8000	120"

2" (50 mm) SECTIONS

6442-4000	36"
6442-5000	45"
6442-6000	60"
6442-7000	100"
6442-8000	120"

WARP BEAM FOR DOROTHY
AND
VOYAGEUR LOOM
With brake drum (or ratchet wheel for older loom)
We also supply a temporary breastbeam to make the tensoin box working on those small looms.

EXTENSION KIT TO CONVERT
SECTIONAL WARP BEAM TO 1 YARD PER TURN (48 cm)

6161-2000	For loom from 27" to 36" (70-90 cm) - 12 pieces
6161-6000	For 45" loom (115 cm) - 16 pieces -
6161-7000	For 60" loom (150 cm) - 16 pieces + 12 blocks -
6162-4000	For 100" (250 cm) loom - 24 pieces + 20 blocks -
6162-5000	For 120" loom (300 cm) - 32 pieces + 28 blocks -

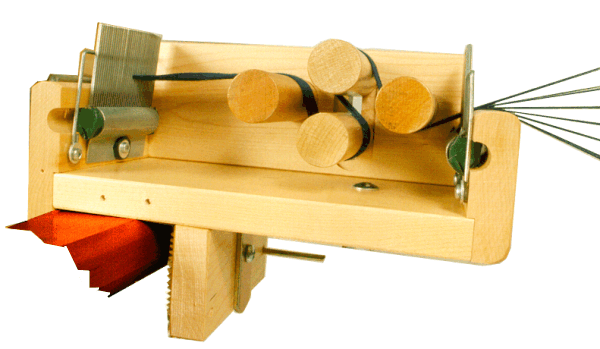

The tension box is used with the Sectional Warp Beam and is adjustable to fit any Leclerc floor loom.
The tension is adjustable for uniform tension on
all warp ends as they are wound from the spool rack to
the loom. Two open 12 threads per inch (4.8 / cm)
combs allow easy
threading and help guide threads into the proper section.

The tension box can also be used with an
optional counter when filling bobbins,
to give the number of meters or yards
on bobbins. 6160-1000

The counter is placed on the tension box and measures the yardage of the warp to ensure that all sections are of the same length.
Easily removable from the tension box.

6160-6000 (english system)
6160-8000 (metric system)

This extension with one comb close to your warp gives you better control on the width of the yarn section (1" or 2") so the guides are not needed. Height of comb is adjustable. Good for sectional warp beam with or without extension.

1042-0000

COMB FOR TENSION BOX
Any reed size available, Mention number of
dents per inch (cm).
6260-0000

GUIDES
A set of 8 pieces that fit the steel divisions for each section of the sectional warp beam. They prevent the warp ends from going into other sections, or from staying on top of the divisions. When the section is filled, transfer to the next section.
6166-1000 per set of 8

DIVIDERS
Useful when beaming long warps. They are placed in each section every 5 or 10 yards (meters) to prevent uneven build-up of threads and keep uniform tension in the warp. They all have to be placed in the same turn.

6165-1000 1" (25mm) sections
6165-2000 2" (50mm) sections

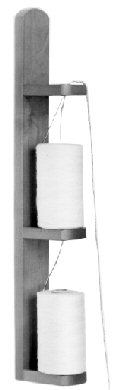

DOUBLING STAND

Doubling stand used for twisting two or three threads together.
One tube of yarn is placed on the floor, one on the lower shelf and one on the center shelf.
Thread passes through the center of the middle and upper cones (or tubes). Thread from upper shelf then joins the two lower ones and passes through the hole in the top shelf.
Hang on wall (2 screws included) 2½" x 5½" x 25" (Made of maple)

6360-1000
