REPAIR PARTS

CANADIAN PRICE (.PDF files)

US PRICE (.PDF files)





3000-4701 Brake circle for most looms (Artisat, Mira, Fanny, Nilus, Nilus II Colonial Nilart and Weavebird)

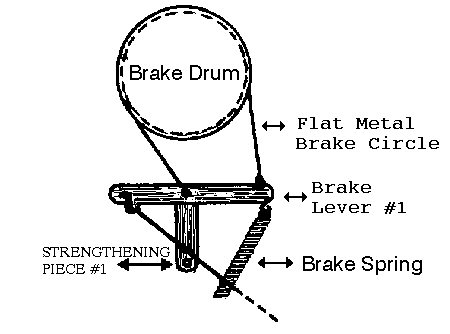

1400-0000 Metal Brake Circle for Dorothy, Voyageur and Compact Loom

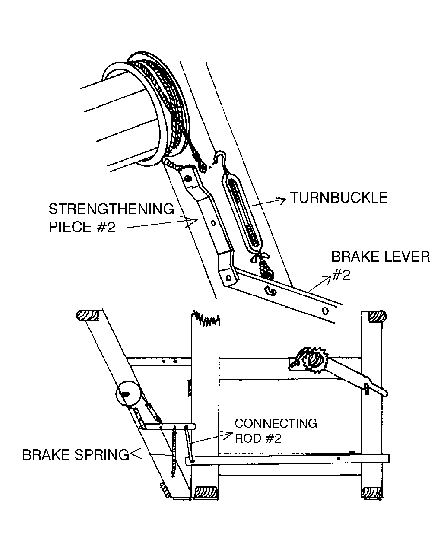

3000-5884 Brake spring
4720-0000 Brake lever #1
4720-0001 Brake lever #2
4719-0000 Stre. piece #1
4779-0000 Stre. piece #2
4789-0000 Connecting rod#2
5874-0000 Turnbuckle
1113-0000 White Pulley with screw

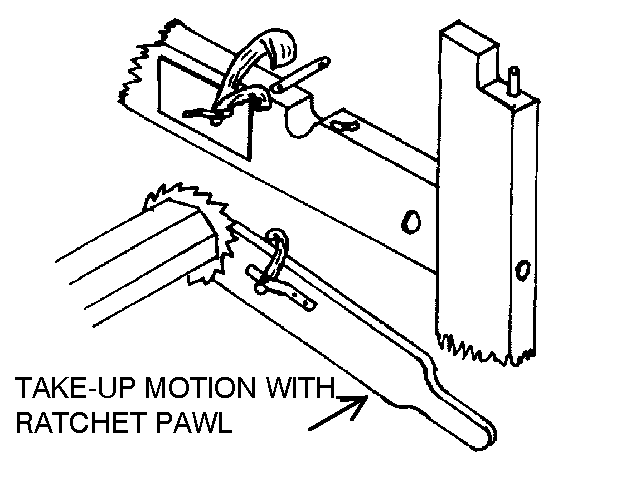

TAKE-UP MOTION WITH RATCHET PAWL:

1022-2802 For Compact 24" (NEW) $22.00
1009-2802 For Artisat 36" $37.00
3672-0000 For Mira, Fanny, Nilus and Nilus II
Colonial, Nilart and Weavebird $65.00

3060-0000 Ratchet Pawl for take-up motion handle $21.00
3070-0000 Long ratchet pawl for cloth beam $28.00
3071-0000 Short ratchet pawl for cloth beam $26.00
3080-0000 Ratchet wheel for cloth beam $60.00

3020-0000 Plain Wheel for front or back beam
3030-0000 Brake drum Mira, Fanny, Nilus, Nilus II, Colonial and Nilart
3110-0000 Brake drum for Artisat
0342-7101 Polyvinyl non-skid base for floor looms

3000-9229 Beater Bumper

3000-9233 Bumper under shaft frame 4s loom
3000-9230 Bumper under shaft frame 8s loom
