DOROTHY 15¾'

	STANDARD EQUIPMENT » Steel reed, 12 dents/inch (5dents/cm) » 400 wire heddles 9½" » 1 boat shuttle 6122-1000 » 1 reed and heddle hook 6141-7000 » 2 metal lease sticks » 2 beam sticks with cords » Instructions » Book "Warp and Weave"
Back Beam Friction Brake in all Dorothy loom	4 SHAFT LOOM This 4 shaft table loom is collapsible for easy carrying and storage. It is a practical loom for school, summer camps, occupational therapy and hobbyists. The shafts are operated by the unique side levers of graduated lengths. A 4 shaft loom comes with levers on right. The selection of the harnesses is easy because the levers tabs are in different colors. This 4 shaft loom can be supplied with a deeper frame to which additional 4 shaft sections can be added to convert to 8 or even 12 shafts. All you have to do is assemble the secions as you wish: they are screwed to the frame.
	8 AND 12 SHAFT LOOM This Dorothy loom is built with a deeper frame in which you can place 2 or 3 sections of 4 shafts, placing levers either on the right or left hand side, as you wish but usually we alternate, right for the first, left for the second and right for the third.

STANDARD EQUIPMENT

» Steel reed, 12 dents/inch (5dents/cm)
» 400 wire heddles 9½"
» 1 boat shuttle 6122-1000
» 1 reed and heddle hook 6141-7000
» 2 metal lease sticks
» 2 beam sticks with cords
» Instructions
» Book "Warp and Weave"

Back Beam Friction Brake in all
Dorothy loom

4 SHAFT LOOM
This 4 shaft table loom is collapsible for easy carrying and storage. It is a practical loom for school, summer camps, occupational therapy and hobbyists. The shafts are operated by the unique side levers of graduated lengths. A 4 shaft loom comes with levers on right. The selection of the harnesses is easy because the levers tabs are in different colors. This 4 shaft loom can be supplied with a deeper frame to which additional 4 shaft sections can be added to convert to 8 or even 12 shafts. All you have to do is assemble the secions as you wish: they are screwed to the frame.

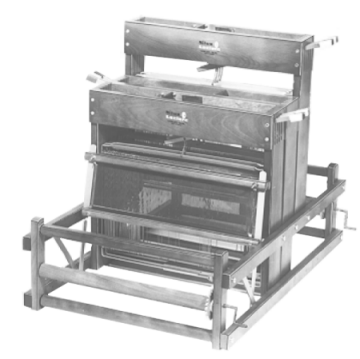

8 AND 12 SHAFT LOOM
This Dorothy loom is built with a deeper frame in which you can place 2 or 3 sections of 4 shafts, placing levers either on the right or left hand side, as you wish but usually we alternate, right for the first, left for the second and right for the third.

SPECIFICATION & DIMENSIONS
	4 SHAFTS	8 SHAFTS	12 SHAFTS
Weaving Width	15¾" (40 cm)	15¾" (40 cm)	15¾" (40 cm)
Number of heddles	400	400	400
Loom Width	20¼" (51 cm)	20¼" (51 cm)	20¼" (51 cm)
Depth	20½" (52 cm)	20½" (52 cm)	20½" (52 cm)
Height	17½" (44 cm)	17½" (44 cm)	17½" (44 cm)
Net weight	16 lbs (7 kg.)	25 lbs (11 kg.)	32 lbs (14 kg.)

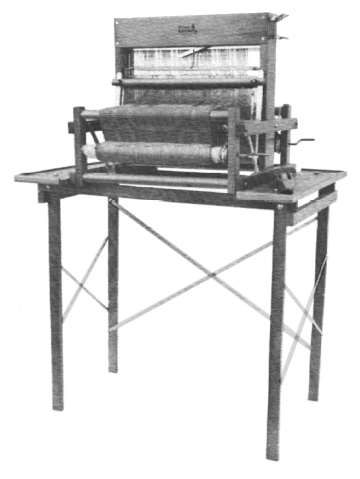

TABLE FOR DOROTHY 15¾" 4 SHAFT

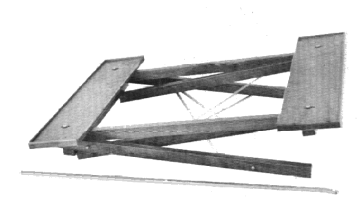

Light folding base. The height allows weaver to use ordinary chair to operate the loom.
Size open: 30.5" x 25" x 22"
Size close: 30.5" x 25" x 3"
